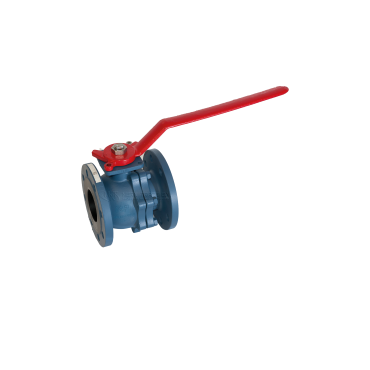

Ball valve 2piece body steel/inox/PTFE flanged PN16/40-Fire Safe-High Temp.

97/23/EC directive N°0056 - Risk category III / module H
Fire safe ISO 10497 - High temperature
Plain PTFE TFM1600 seats
Full bore - Anti-blowout stem - Antistatic system
ISO pad -Locking device
Ball with decompression hole
TS: -20°C/+230°C.
Steam up to 12 bar max.
DIN 3202 F4 up to DN100, F5 above
PS: 40 bar up to DN50, 16 bar above
Connection= Flange PN16/40

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-7249752
Body material Carbon steel-A216WCB
Disc / Ball / Wedge CF8M-316
Seat PTFE
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-7249752015 Ball-Valve-Split.body- Fire.Safe-High.Temp. 15 15 115
€131.75
- +
MXT-7249752020 Ball-Valve-Split.body- Fire.Safe-High.Temp. 20 20 120
€156.47
- +
MXT-7249752025 Ball-Valve-Split.body- Fire.Safe-High.Temp. 25 25 125
€202.58
- +
MXT-7249752032 Ball-Valve-Split.body- Fire.Safe-High.Temp. 32 32 130
€247.08
- +
MXT-7249752040 Ball-Valve-Split.body- Fire.Safe-High.Temp. 40 40 140
€354.13
- +
MXT-7249752050 Ball-Valve-Split.body- Fire.Safe-High.Temp. 50 50 150
€424.96
- +
MXT-7249752065 Ball-Valve-Split.body- Fire.Safe-High.Temp. 65 65 170
€536.98
- +
MXT-7249752080 Ball-Valve-Split.body- Fire.Safe-High.Temp. 80 80 180
€728.03
- +
MXT-7249752100 Ball-Valve-Split.body- Fire.Safe-High.Temp. 100 100 190.
€1,011.33
- +
MXT-7249752125 Ball-Valve-Split.body- Fire.Safe-High.Temp. 125 125 325
€1,599.53
- +
MXT-7249752150 Ball-Valve-Split.body- Fire.Safe-High.Temp. 150 150 350.
€2,071.46
- +
MXT-7249752200 Ball-Valve-Split.body- Fire.Safe-High.Temp. 200 200 400
€3,937.27
- +
